FTTH Cable (GYXTPY) (RTFO012)_Fiber Optic Cable_Structured Cabling-Rongtong Industrial (HK) Co., Limited

Description:

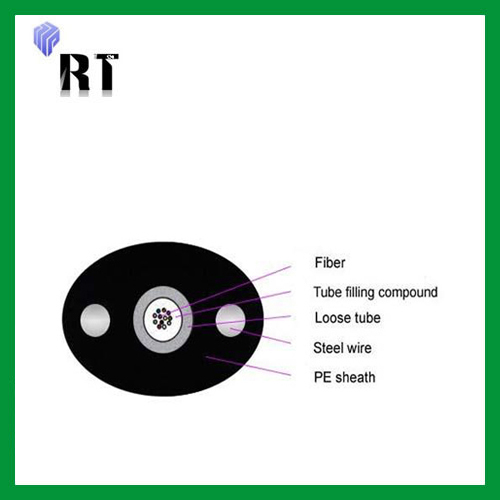

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Features:

· Good mechanical and temperature performance.
        · High strength loose tube that is hydrolysis resistant.
        · Special tube filling compound ensure a critical protection of fiber.
        · Crush resistance and flexibility.
        · Inexpensive and can reduce operating costs.
        · Two parallel steel wires ensure tensile strength.
        · Small diameter, light weight and friendly installation.
        · Long delivery length.

Datasheet:

·Optical Characteristics:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

·Technical Parameters:

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYXTPY	1~2	5.6	34	500	500	10D/20D
GYXTPY	3~6	6.0	38	500	500	10D/20D
GYXTPY	7~12	6.5	43	500	500	10D/20D
