Description:

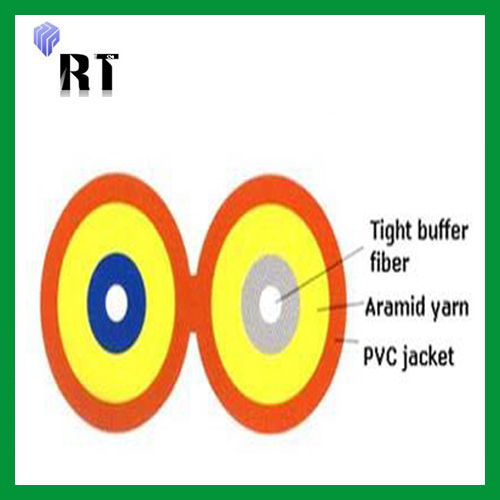

2 fiber, Figure 8 structure, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, PVC Jacket.

Standards:

Comply with Standard YD/T 1258.3-2003, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR and OFNP.

Datasheet:

Cable Code:

Mechanical Characteristics:

Optical Characteristics:

		50/125μm	62.5/125μm	G.652	G.655
Attenuation(+20℃)	@850nm	≤3.5dB/km	≤3.5dB/km
	@1300nm	≤1.5dB/km	≤1.5dB/km
	@1310nm			≤0.45dB/km	≤0.50dB/km
	@1550nm			≤0.30dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm	≥500MHz·km	≥200MHz·km
Bandwidth (Class A)	@1300nm	≥1000MHz·km	≥600MHz·km
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc				≤1260nm	≤1480nm
Attenuation at temperature cycling Δα(-20℃~+85℃)	@1300nm	≤0.25dB/km	≤0.25dB/km
Attenuation at temperature cycling Δα(-20℃~+85℃)	@1550nm			≤0.10dB/km	≤0.15dB/km

Environmental Characteristics:
