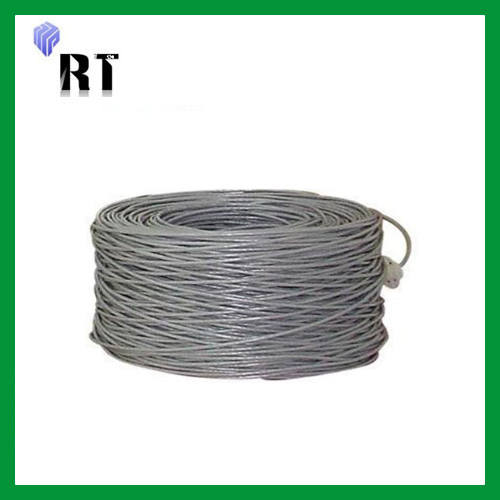

CAT6 FTP 100% Copper Lan Cable (RTLAN003)


Send enquiry

Contact us

  (for this item)   (for more solutions)
Datasheet:

Product Structure:


Conductor 100% copper，Φ0.575±0.01mm
Insulation brand new HDPE, Φ1.00 ±0.05mm
Double outer Sheath brand new PVC or LSZH
Color Spectrum Blue white/blue；Orange white/orange；Green white/green;Brown white/brown
Number of Conductors 8 cores 4 pairs



Technical parameters:


Insulation Resistance （f=1-100MHZ）100±15%.
Delay deviation （max）45ns/100m
Transmission Velocity （NVP） 66%
Bending radius （min）eight times of the outer diameter.
Tensile Resistance （max）400N





Standards:

  • ●ANST/TTA/ETL-568-B，YD/T1019-2001
Application:

  • Indoor wiring, applicable to electromagnetic interference and higher requirements for data security environment；High transmission rate network applications: the center cross PE skeleton separation of four separate lines for the design, electrical transmission reliable performance is excellent, increase bandwidth and signal-to-noise ratio allowance. Satisfied with 250 MHZ broadband communication channel，transmission maximum rate of 1000 MBPS.
