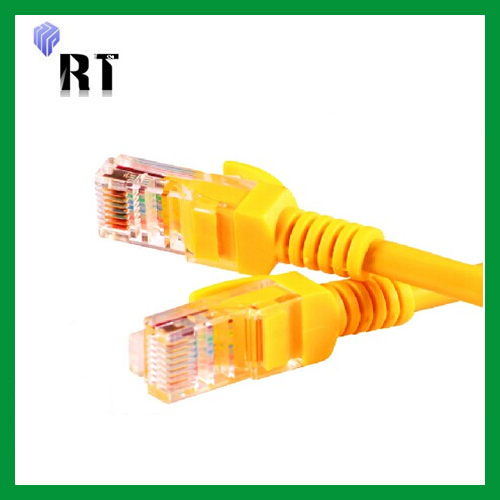

CAT5E UTP 100% Copper Patch Cord (RTPC008)


Send enquiry

Contact us

  (for this item)   (for more solutions)
Specification:

Product information:



Conductor 4 pairs 24AWG single/multi stranded copper wire
Interface Type RJ45
Color grey/ white/ blue/red/yellow/green/orange…… According to the requirements.
Length 1M，15M，2M，3M，5M，10M，20M，30M，50M…… According to the requirements





Performance index:



Bending Radius

four times of the outer diameter

Operating Temperature

-40℃~70℃

Tensile Test

25lbs(11.35kg)

Tension Strength

133N

Insulation Pressure-resistant

1000VAC

Insulation Resistance

500Mohms

Continued Resistance

20Ω








Features:

  • ●Molding line，Plug and play，adaptive transmission rate 10/100mbps.

    ●The RJ45 property ensure that the good shear properties and signal transmission performance.

    ●Conform to the TIA/EIA-568B CAT5E standard；ISO/IEC 11801 CLASS D;ULC(UL)ETL approved；EMC standard.
Application:
  • ●workspace data panel；manage of patch panel；network devices connected.
