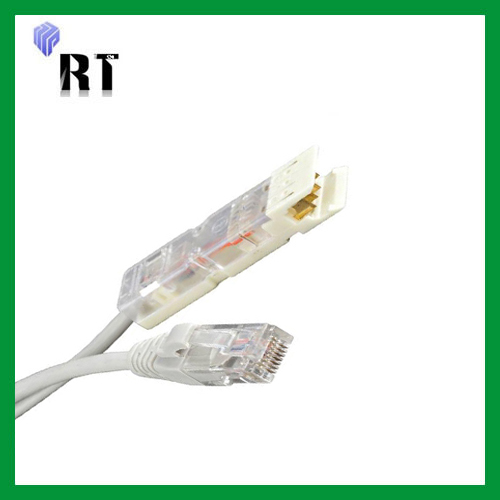

RJ45-110 2 Pair 100% Copper Patch Cord (RTPC003)


Send enquiry

Contact us

  (for this item)   (for more solutions)
Specification:

Product information:

Conductor 4 pairs 23AWG single/multi stranded copper wire.
Interface Type RJ45-110 Plug
Color grey/ white/ blue/red/yellow/green/orange…… According to the requirements
Length 1M，2M，3M，5M，10M，20M，30M，50M…… According to the requirements



Performance index:



Bending Radius

eight times of the outer diameter

Operating Temperature

-40℃~70℃

Tensile Test

25lbs(11.35kg)

Tension Strength

133N

Insulation Pressure-resistant

1000VAC

Insulation Resistance

500Mohms

Continued Resistance

20M ohms






Features:

  • ●Molding line，Plug and play，adaptive transmission rate 10/100mbps.

    ●The RJ45 property ensure that the good shear properties and signal transmission performance.
    ●Balance optimization of transmission parameters，apply to the synchronous parallel transport protocol.

    ●Conform to the TIA/EIA-568B CAT6 standard；ISO/IEC 11801 CLASS E;ULC(UL)ETL approved；EMC standard;3P approved, UL/CSA LISTED CM/CMR combustion test.
Application:
  • ●workspace data panel；manage of patch panel；network devices connected.
