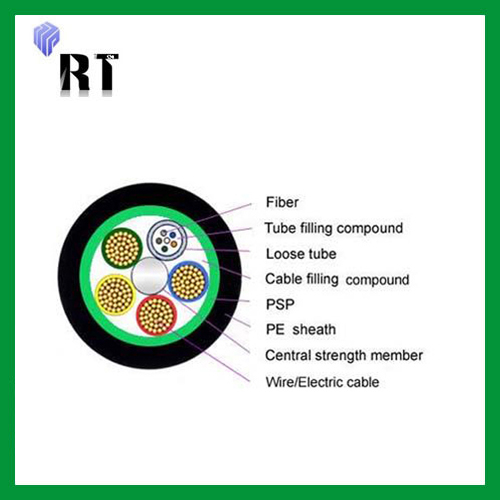

The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.

· Good flexibility and mechanical properties.
· Opto and electricity integrated, fully save pipeline resources.
· Electric and optical cable maintain relatively independent structure, easy to import.
export and link when installation.
· Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are
multi-one network, saves costs.
· Larger operating temperature range.
· Larger construction temperature range.
· Cable diameter and bending radius are small, freely install in small space and compatible with
optical signal and electric energy transmission.

Technology advantages:

· Perfect design for transmission lines, highly effect for electricity saving.
· Opto and electricity integrated, conveys electric energy and information at the same time, and keep
monitoring wire lines.
· Optical fiber compounded in the wire, preventing fiber broken and split accidents by ground llightning.
· Preventing cable suffered corrosion, ruinning or fiber broken accidents caused by field strength.
· Additional load brings no hidden danger for original lines.

Stretching, crushing, impacting, repeated bending, torsion, winding and loss complies with YD / T 901-2001.

· Telecommunications network.

· Construction of communication base stations in villages, remote areas in cities and towns.
· Residential areas and buildings FTTH.
· Security monitoring project.
· Others occasion which information together with electric power at the same time.

Technical Parameters:
