FTTH Indoor Cable (RTFO009)


Send enquiry

Contact us

  (for this item)   (for more solutions)
Description:

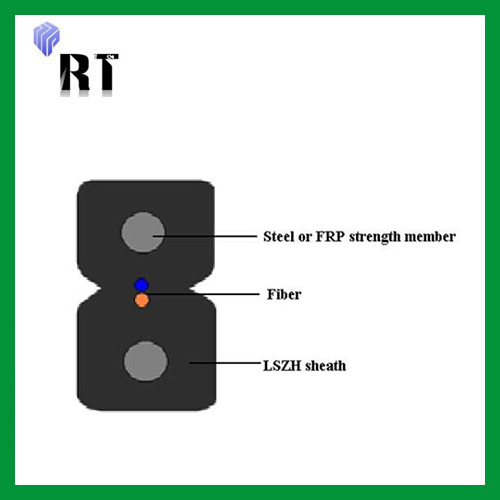

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.




Features:

· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the
fiber;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
Datasheet:

Optical Characteristics:



G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20℃)

@850nm





≤3.0 dB/km

≤3.0 dB/km

@1300nm





≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km





@1550nm

≤0.22 dB/km

≤0.23dB/km





Bandwidth (Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength

λcc

≤1260nm

≤1480nm







Technical Parameters:



Fiber

Count

Cable Diameter
mm

Cable Weight
kg/km

Tensile Strength
Long/Short Term
N

Crush Resistance
Long/Short Term
N/100mm

Bending Radius
Static
/Dynamic
mm

1

(2.0±0.2)×(3.0±0.2)

8

30/60

300/1000

15/30

2

(2.0±0.2)×(3.4±0.2)

8.5

30/60

300/1000

15/30

1

(2.0±0.2)×(3.8±0.2)

9

30/60

300/1000

15/30

4

(2.0±0.2)×(4.0±0.2)

10

30/60

300/1000

15/30
